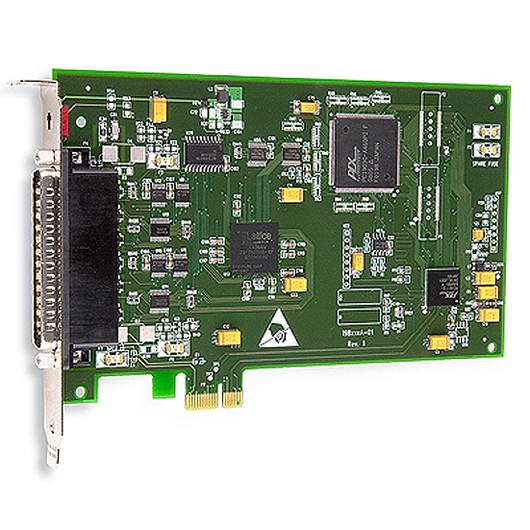

PCIe-DIO24

24-Channel, PCI Express (PCIe) Digital I/O Board

Key Highlights

• 24 channels of digital I/O with selectable 3.3 V and 5 V logic levels: 8-bit Port A, 8-bit Port B, 8-bit Port C (may be made up of 4-bit C-HI, and 4-bit C-LO)
• Fully plug-and-play
• Emulates 82C55 mode zero
• Software selectable pull-up and pull-down resistor configurations
• Digital I/O lines are accessed through a 37-pin D-type connector
• Software and connector compatibility with PCI-DIO24 and CIO-DIO24 for seamless migration of existing applications
• View the complete PCIe-DIO Series

Software

• TracerDAQ® software included for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Comprehensive drivers for DASYLab® and NI LabVIEW™
• InstaCal software utility for installation, calibration, and testing
• Supported Operating Systems: Windows® 8/7/Vista®/XP SP2, 32-bit or 64-bit
