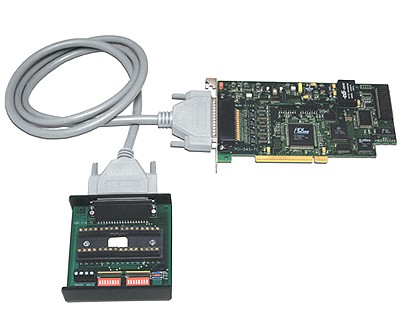

PCI-DAS-TC

16-Channel, Thermocouple Measurement Board plus One CJC Channel

Key Highlights

• 16 differential thermocouple input channels plus one CJC channel
• Four programmable gain ranges
• Resolution to 0.03 °C depends on conversion rate
• Reads thermocouple types J, K, E, T, R, S, B
• Conversion to °C or °F
• Gain and offset automatically calibrated on each scan
• Cold junction compensation on each scan
• Overall conversion rate 4.6 to 22.2 ms
• Provides 500 VDC isolation
• Fully plug-and-play



Software

• TracerDAQ® software included for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Comprehensive drivers for DASYLab® and NI LabVIEW™
• InstaCal software utility for installation, calibration, and testing
• Supported Operating Systems: Windows® 8/7/Vista®/XP SP2, 32-bit or 64-bit
