SPECIFICATIONS
| SERIAL TECHNOLOGY | |
| RS-232 (DB9) | TD, RD, DTR, DSR, RTS, CTS, DCD plus Signal Ground |
| RS-485 2-Wire | Data A(-), Data B(+), GND |
| RS-422/485 4-Wire | TDA(-), TDB(+), RDA(-), RDB(+), GND |
| Serial Connector RS-422 | DB9M or Removable Terminal Blocks (RS-422/485 models) |
| Data Rate | Up to 230.4 Kbps |

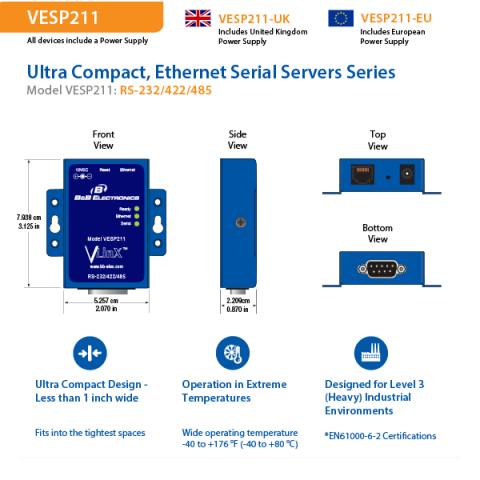

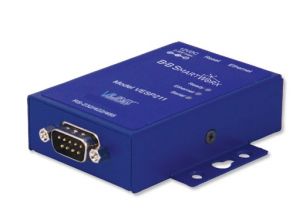

Vlinx VESP211 Series Ethernet to Serial Converters

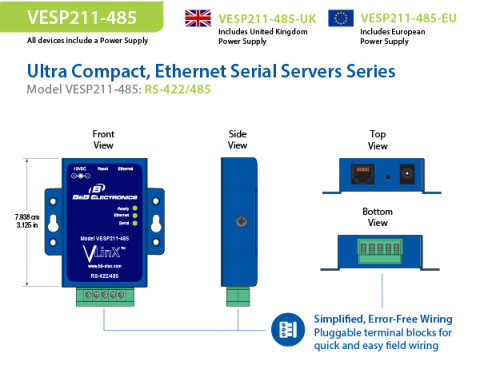

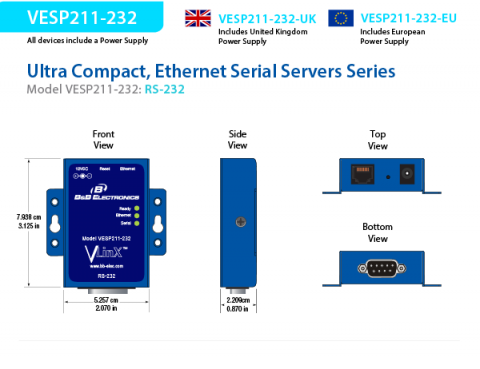

RS-422/485, RS-232/422/485 AND RS-232 TO ETHERNET
ULTRA COMPACT ETHERNET SERIAL SERVERS
VESP211 Serial Servers help increase your ROI and reduce the costs associated with legacy systems by enabling you to connect serial devices (RS-232, RS-422 or RS-485) as a node to an Ethernet network. The serial port can be accessed remotely over a LAN/WAN through an embedded web server using Direct IP Mode, Virtual COM Port, or Paired Mode connections and a simple web browser.
Increase Efficiency
Enables remote configuration, data acquisition and monitoring
Enables quick, simplified off-site troubleshooting
Reduces/eliminates serial cabling
Reduces/eliminates management time and costs
Increase Efficiency
Enables remote configuration, data acquisition and monitoring
Enables quick, simplified off-site troubleshooting
Reduces/eliminates serial cabling
Reduces/eliminates management time and costs
Rugged & Affordable
- UL 60950
- -40 to 80 C
- Small Form Factor
| Power | |
| Source | Power Supply included |
| Input Voltage | 10 to 30 VDC |
| Connector | Power Connector 5.5 x 2.1 mm |
| Power Consumption | 2.5 Watts Max. |
