Elinx ESW500 Series

Redundant, ultra-fast recovery, easy configuration

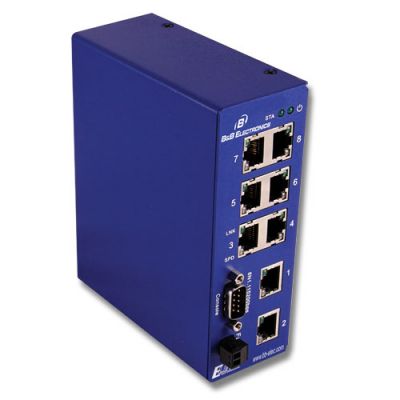

B&B Electronics Elinx ESW500 series Industrial managed Ethernet switches provide powerful functionality in an IP30 DIN-rail or panel mount package. The switches are designed for industrial applications and engineered with managed features such as IGMP Snooping, Port Based VLAN, 802.1Q Tag VLAN, STP, RSTP, Web Based Management, Ingress Packet Filtering, and Egress Rate Control.

Buy and compare our Industrial managed Ethernet switches below. Click on each model number to view a photo and see the Details, Specs, Downloads, and Application tabs for further information.

(port #) indicates the port is a combination port, where the copper media is shared with the SFP slot. Once the SFP slot is filled with an SFP module, the copper port is disabled.

Specifications

>   Shock, Vibration Tested
>   Temperature rating: -10 to 60°C (standard) or wide -40 to 75°C (-T models)
>   Built in fiber optic options (multi-mode, single-mode SC ports)
>   Gigabit options with copper and SFP combo ports
>   Rapid Spanning Tree Protocol recover system
>   IGMP with Query mode for multimedia application
>   Port based VLAN / 802.1 Q Tag VLAN
>   Relay alarm output for system events
>   Port mirroring for diagnostics
>   Power inputs
          12V - 36VDC (All Models)
          10V - 24 VAC (All ESW508 / ESW516 Series)
>   100% burn in testing

Product Documentation

ESW508

ESW508-2MC-T

ESW508-2SC-T

ESW508-T

ESW516

ESW516-T

Datasheet

Datasheet

Datasheet

Datasheet

Datasheet

Datasheet

PRODUCTS

Details

Features and Benefits

>   Fully managed Ethernet switches so you can manage network operation, configuration, and security via web interface
>   Redundant ring technology for ultra-fast recovery time
>   Alarm outputs help you detect and report network irregularities before serious problems happen
>   Dual power inputs help keep power on continuously and applications running non-stop
>   IP30 case, DIN or panel mount is ideal for industrial applications, hazardous environments
>   Gigabit options allow for higher throughput speeds for high bandwidth networks

     These managed Ethernet switches also come with important industrial features to ensure reliable communications in an industrial application. RingOn is Rapid Rescue and Recovery System for Ethernet networks which is designed to provide a backup system (path) for communications. If a break occurs in the physical network communications can be restored in less than 15 ms.
