USB to RS-232 DB9 Converter

Low cost USB to RS-232 Adapter

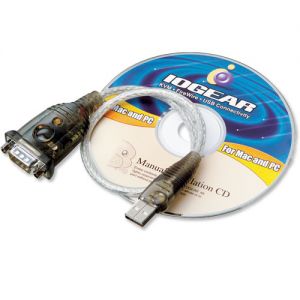

Model UC232A USB smart adapter cable lets PC users add an additional serial port for RS-232 connections using USB. This USB to RS-232 DB9 adapter provides an external plug-and-play port for convenient connection of cell phones, digital cameras, modems and ISDN terminals.

Learn more about our USB to RS-232 DB9 adapter below.  View a photo of the model and see the Details, Specs, Documentation/Downloads, and Accessories tabs for further information.

Details

Just plug the serial device into the cable and the cable into the USB port. This USB to RS-232 DB9 adapter supports automatic handshake. No IRQs are required. This smart cable transmits up to 230 kbps with a 96 byte buffer for upstream and downstream data flow.



Specifications

USB-compliant operating system (Windows 98, ME, 2000, XP, Mac O/S 8.6 or greater), available USB type A female port. The cable is 14 in (36 cm) long with a USB type. A male connector and a 9-pin DB9 male connector on the serial end.

Product Documentation

UC232A

Datasheet
