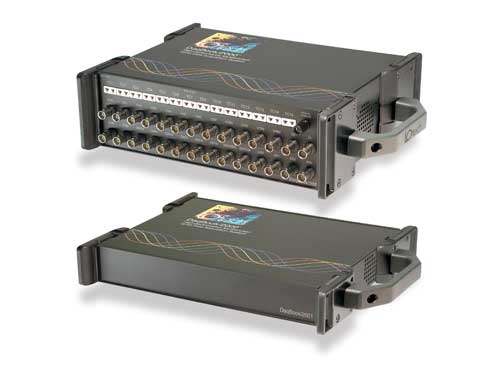

DaqBook/2000 Series
Ethernet-Based 16-bit, 200 kHz Data Acquisition Systems
Key Highlights
- Analog input, analog output, frequency input, timer output, and digital I/O; all in one compact and portable enclosure
- Built-in Ethernet connection provides continuous streaming to the PC with no data loss
- 16-bit, 200 kHz A/D converter
- Expand analog and digital channel count with DBK expansion options
- Powerable from 10 to 30 VDC, or with included AC adapter
- Synchronous analog, digital, and frequency measurements
- Four channels of 16-bit, 100 kHz analog output (models /2001 and /2020)
- DaqBook/2020 offers convenient front panel connectors for thermocouple, voltage and frequency measurements all in one box
- DaqBooks attach to over 40 DBK signal conditioning options to assemble an affordable system, customized to your particular application
Software
- DaqView Out-of-the-Box software application is included for effortless data logging and analysis
- Comprehensive drivers for DASYLab®, NI LabVIEW™, Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
- DaqCal software application for easy user calibration
- Supported Windows® Operating Systems: Windows 7/Vista/XP SP2,
- 32-bit or 64-bit
