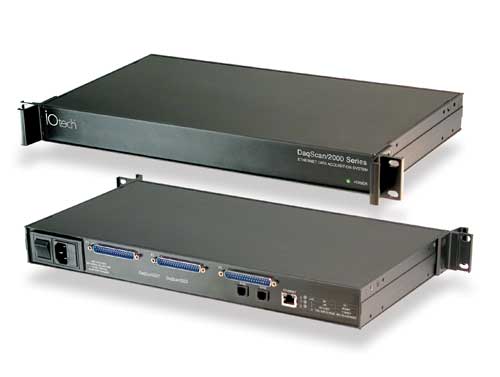

DaqScan/2000 Series

Ethernet-Based Rack Mount Systems for Various Sensor Types

Key Highlights

• Adds analog I/O, digital I/O, and frequency I/O to Ethernet-based test systems
• All I/O can be synchronous, enabling precise timing between various I/O functions
• 8 differential, or 16 single-ended inputs, expandable up to 256 voltage or 896 TC channels using signal conditioning and expansion options
• Up to 40 built-in TTL-level digital I/O, expandable up to 256 channels of isolated I/O using low-cost isolation modules
• Convenient 1U high 19” rack mount package minimizes rack space in test systems

Software

• DaqView Out-of-the-Box software application for effortless data logging and analysis
• Support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Comprehensive drivers for DASYLab® and NI LabVIEW™
• DaqCal software application for easy user-calibration
• Supported Windows® Operating Systems: Windows 7/Vista/XP SP2,
• 32-bit or 64-bit
