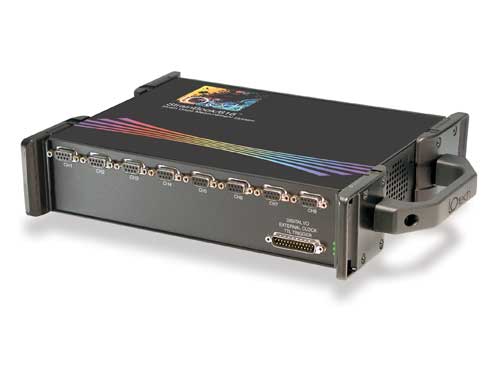

StrainBook/616

Ethernet-Based Strain Gage Measurement System

Key Highlights

• 8-channels built-in, expandable up to 64 channels per StrainBook
• Multiple StrainBooks can be synchronized for applications >64 channels
• Expansion options for voltage, temperature, vibration, and sound measurements
• High-speed Ethernet interface for continuous measurement transfer to the PC
• 1-MHz scanning A/D converter, with simultaneous sample and hold on each channel
• 100% programmable, no mechanical pots to adjust
• Full, half, and quarter arm support
• 60 to 1000 Ohm bridge
• Software-selected Shunt-Cal
• Independent filter per channel
• Programmable excitation source
• DC operable for in-vehicle applications

Software

• WaveView Out-of-the-Box software application for effortless data logging and analysis
• Support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Comprehensive drivers for DASYLab®, MATLAB®, and NI LabVIEW®
• Supported Windows® Operating Systems: Windows 7/Vista/XP SP2,32-bit or 64-bit
