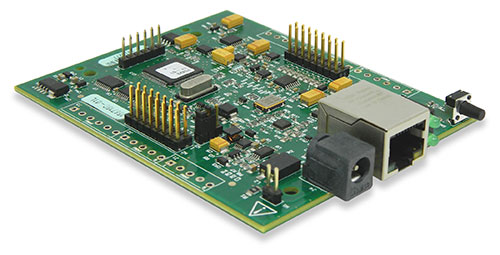

E-1608-OEM

16-Bit Multifunction Ethernet DAQ Board

Key Highlights

• 16-bit high-speed Ethernet board
• Sample rates up to 250 kS/s
• 8 SE/4 DIFF analog inputs
• Two 16-bit analog outputs
• Eight individually-configurable digital I/O
• One 32-bit counter input
• Includes a built-in 10/100 BASE-T auto-negotiation, high-speed communication port
• Uses TCP/IP and UDP for network communication
• Power adapter available separately
• Header connectors
• Cased Version Available

Software

• Support for DAQami, easy-to-use advanced data logging application to acquire,
• view, and log data
• TracerDAQ® for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET,
• including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• Universal Library for Android™ includes support and examples for the Android 3.1
• platform (API level 12) and later
• DASYLab® and NI LabVIEW™ drivers
• InstaCal™ software utility for installing, configuration, and testing
• Supported Operating Systems: Windows® 8/7/Vista®, 32-bit or 64-bit;
• Android 3.1 (API level 12) and later
