Flexible and Simple Solutions
As a crucial part of the Model K9145D10Accelerometer Calibration Workstation, the Windows 7®- and Windows 8®-compatible control software has been designed to provide accurate calibrations and an easy-to-use graphical user interface, based on the 40+ years of accelerometer manufacturing experience and more than 1,000,000 calibrations performed at PCB Piezotronics.
K9145D10 Automated Portable Calibration

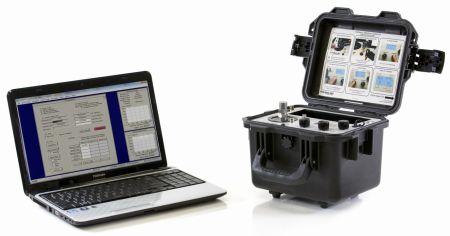

The Portable Accelerometer Calibration System, Model K9145D10, features accurate back-to-back comparison calibration of accelerometers in accordance with ISO 16063-21 (2003). A derivative of the industry-leading 9155 Accelerometer Calibration Workstation and based on a laptop PC system with a state-of-the-art 24-bit USB dynamic signal analyzer module, the K9145D10 offers a portable, turnkey calibration solution suitable for both laboratory and field portability.
The K9145D10 system supports a variety of accelerometer types, including ICP® (IEPE), charge piezoelectric and voltage mode transducers. Other common accelerometers, such as piezoresistive and capacitive, can be supported by including additional signal conditioning. The included 9110D Portable Vibration Calibrator provides best-in-class rugged portability and offers simple, elegant usability as a standalone unit for in-situ calibrations. Velocity control software allows for constant velocity sweeps to calibrate velocity transducers.
All system components are selected for optimal portable performance within a secondary calibration system, starting with the industry’s most proven reliable portable vibration calibration system shaker, the 9110D, and precision quartz ICP® reference accelerometer. Additional components included with the portable system are a Windows laptop controller with software and printer, system verification accelerometer, portable calibration system, common transducer cabling and a variety of mounting accessories.
