CMCP601 Machinery Diagnostic Demonstration Rotor Kits

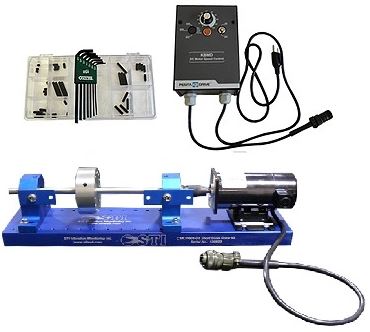

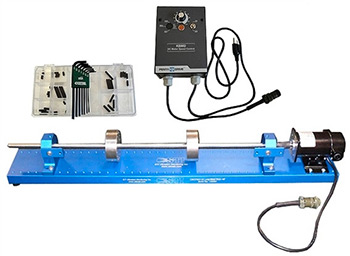

     The CMCP601 Rotor Kits were developed as a small working example of a real machine where vibration signals may be simulated under realistic circumstances. Both short (single critical) and long based (two criticals) rotor kits are available as an option. A variety of transducers may be installed to provide vibration signals. These signals may be used to train vibration analysts or maintenance personnel to troubleshoot actual vibration transducer systems or vibration signals.

     The Rotor Kit using sleeve type bearings is primarily studied using Time Based analysis techniques such as time waveforms, orbits, and shaft position plotting, phase, and mode shape analysis. With the optional ball bearing, a FFT type instrument is useful to study the frequencies generated by the bearing.
